ECHO
More Than an Analyzer.
Total Control of Your Gas Mixture
Oxygen, Helium and Carbon monoxide - all in one package!
ECHO is a gas analyzer built for technical divers who take their breathing gas seriously. Whether you're blending nitrox for a deep reef dive or mixing trimix for something more ambitious, ECHO tells you exactly what's in your cylinder, so you can focus on the dive, not the doubt.
Connect it to the Divesoft App via Bluetooth and your whole blending workflow just clicks into place, from analysis to labeled cylinder in minutes.
ECHO also checks for carbon monoxide in your breathing gas - the kind of contamination you can't see, smell, or taste, but absolutely need to know about before you descend. It's the safety check that's easy to skip and impossible to regret doing.
The helium measurement is handled by a clever acoustic sensor that never needs replacing. Less maintenance, one less thing to worry about between trips.
Light enough to toss in your dive bag without a second thought, and tough enough to survive the journey - ECHO is the kind of gear that quietly earns its place on every packing list.
The analyzer comes with the following:
#8500 Analyzer ECHO
#4156 Oxygen Sensor Divesoft 22S
#3362 USB-C cable

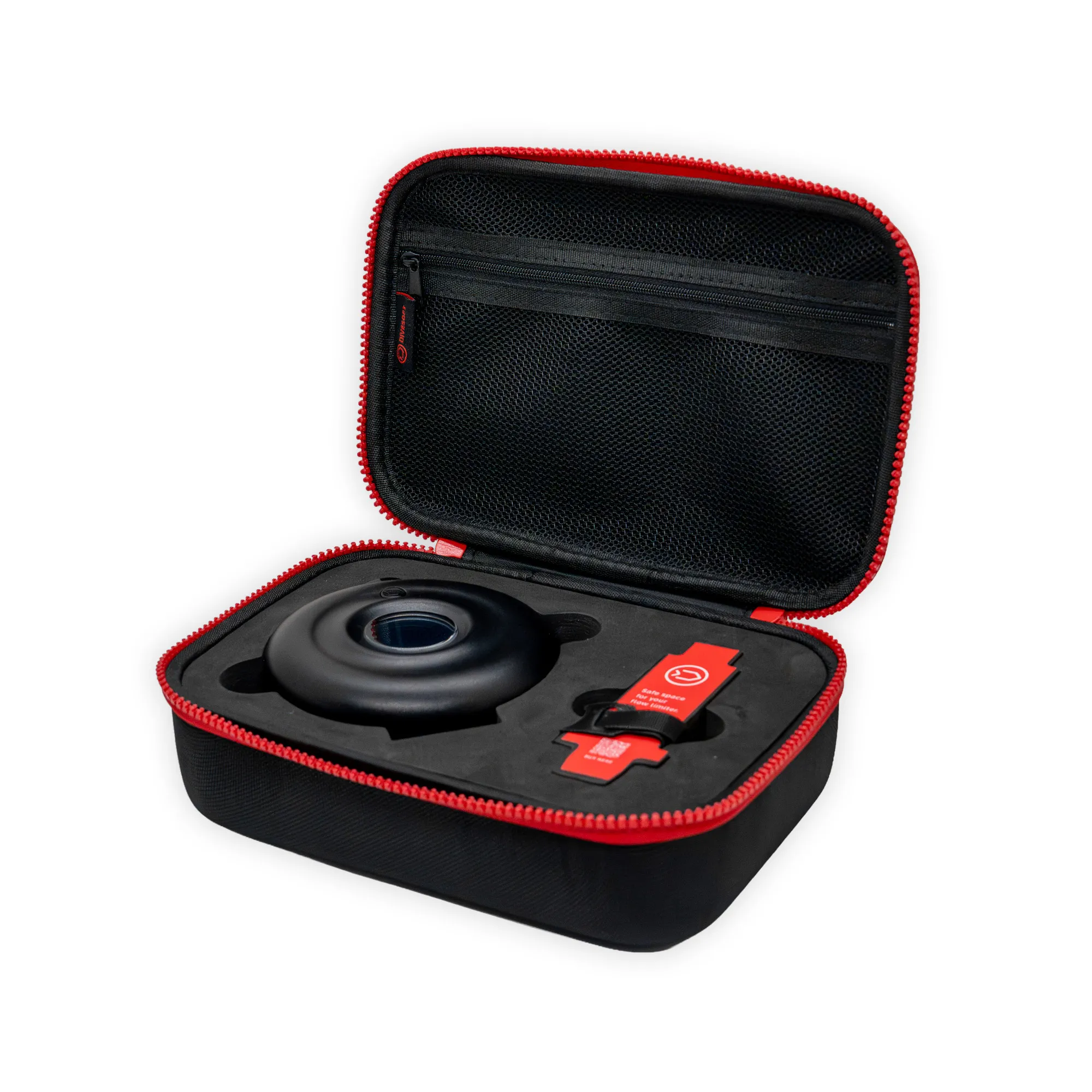

#4162 EVA case
Dimensions: diameter 127 mm, thickness 37.5 mm, length including strap 410 mm
Weight: 288 g (including strap)
Oxygen measurement range: 0 to 100 %, resolution 0.1 %, T90 response time ~5 s
Helium measurement range: 0 to 100 %, resolution 0.1 %, acoustic speed-of-sound principle, T90 ~5 s
Carbon monoxide range: 0 to 100 ppm, alarm threshold 5 ppm
Display: HR-TFT (high reflective TFT), optimized for bright environments
Battery: rechargeable Li-ion, 3.7 Wh, up to 100 h operation
Charging: USB-C, 5 V / 1 A, charging time approx. 2.5 h
Connectivity: Bluetooth Low Energy (BLE), Divesoft.App compatible
Housing: PC-ABS with integrated wrist strap
Operating temperature: 0 to +45 °C (32–113 °F)
Storage temperature: 10 to 30 °C (50–86 °F)
Operating humidity: 5–95% RH non-condensing
The built-in battery and oxygen electrochemical sensor have a limited warranty of 12 months.
The analyzer has a limited warranty of 24 months
